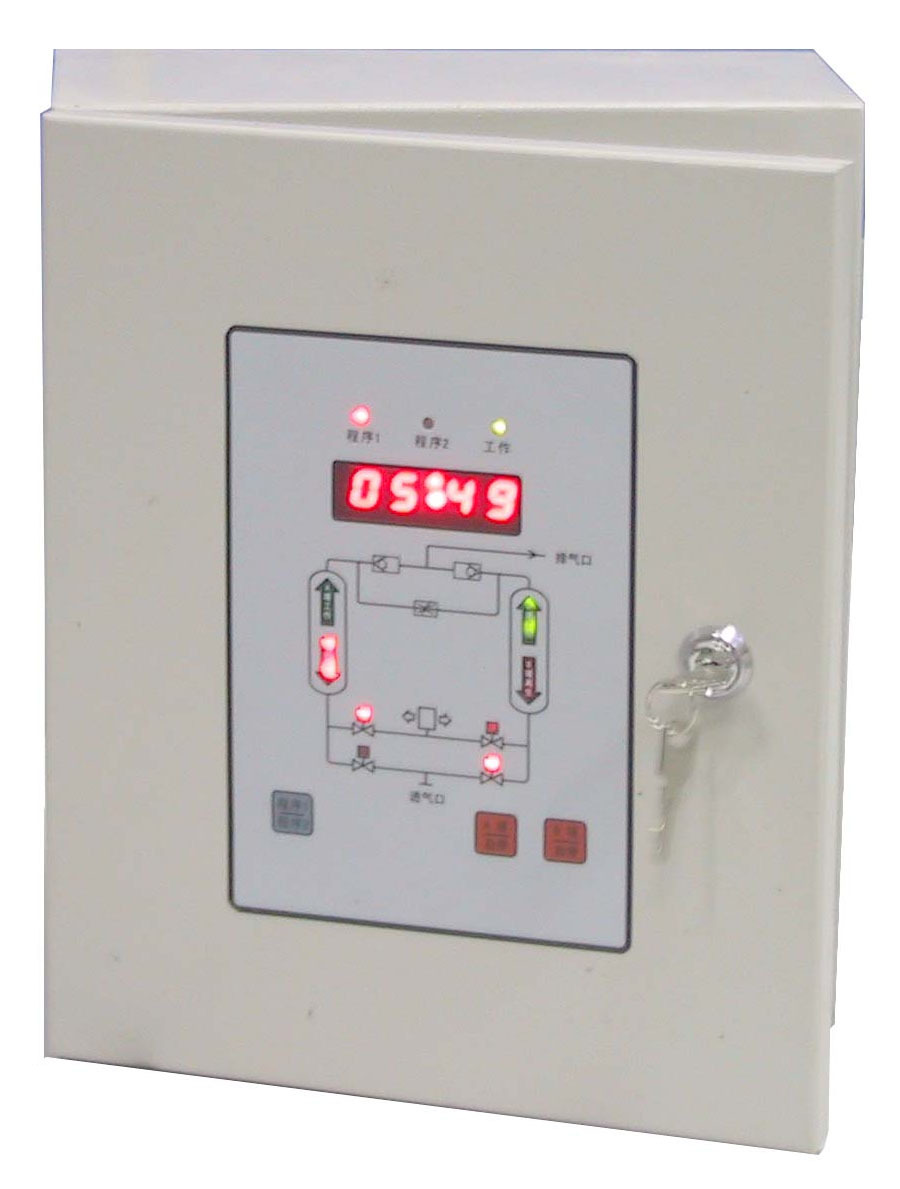

1 Heatless regenerative adsorption dryer controller
This product is a dedicated controller developed using PIC single-chip microcomputer technology. It automatically controls the adsorption and regeneration work of the A and B towers of the dryer according to the set parameter values, and clearly displays the current working status through digital tubes and indicator lights. With I/O remote control.
The product has a beautiful appearance and is easy to operate.
2 Micro-heat regenerative adsorption dryer controller
One of the cost-effective series of control products designed for adsorption micro-heat regeneration dryers. In addition to having field-programmable time control, it can also perform temperature setting. Temperature control adopts position control. With appropriate AC contactors and protection circuits, various types and different powers of electric heaters can be driven.
● Running parameters can be set on site;
● Comprehensive running information display, including running time, heating temperature, and valve status;
● With over-temperature protection function, the auxiliary contacts of the AC contactor are fully utilized as feedback signals to judge the correctness of the heating action;
● Has single or dual group electric heater control function;
● Reserved 4~20mA two-wire or three-wire analog input interface, which can be easily connected to the dew point sensor;
● The properties of the inlet valve can be set, and there is a delayed shutdown function when the machine is stopped to ensure pressure balance;
● When the heating system fails, it is allowed to switch to heatless operation;

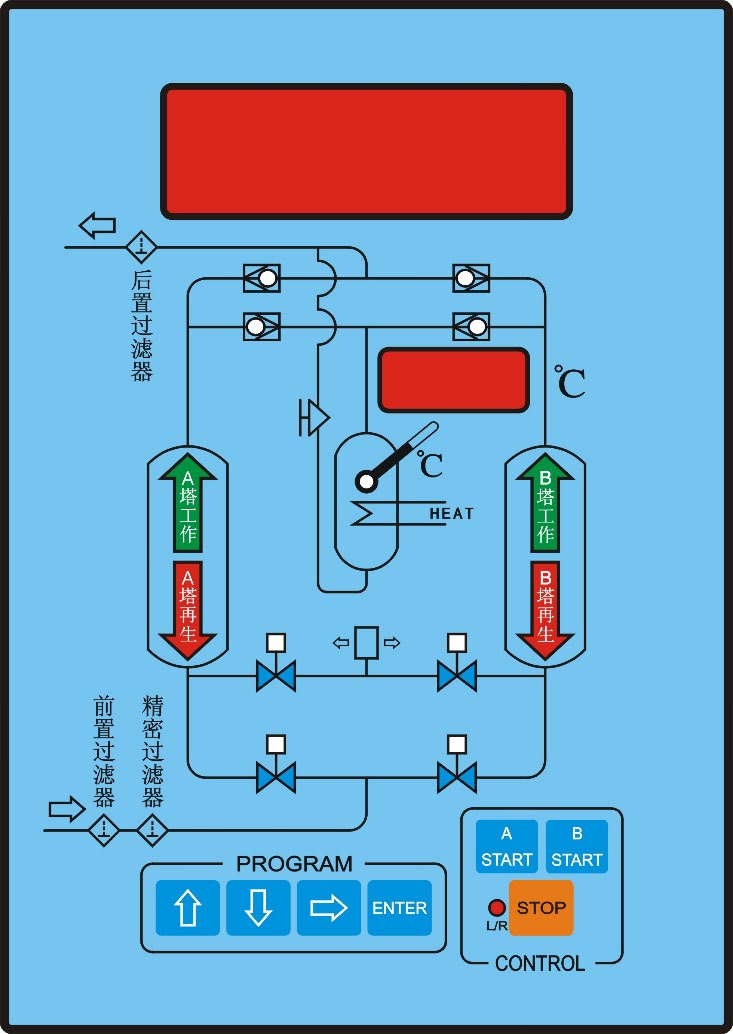

● Unique process display screen, beautiful appearance, easy operation.
